How to Construct a Small Septic System: A Comprehensive DIY Guide

by
FacebookX

Introduction

Building a small septic system can be an effective and eco-friendly way to manage wastewater, especially in rural areas or off-grid locations. It ensures proper disposal of household wastewater while also promoting sustainable living. With some basic materials, tools, and proper guidance, you can construct a small septic system at home. This article will guide you through the process, step by step, while keeping safety and efficiency in mind.

Understanding Septic Systems

A septic system consists of two main components:

  1. The Septic Tank – This collects and treats wastewater, separating solids from liquids.
  2. The Drain Field – Also known as the leach field, this disperses the treated water safely into the soil.

A well-designed septic system efficiently processes wastewater while preventing contamination of water sources.

Materials and Tools Needed

Before starting, gather the following materials and tools:

  • Pre-made septic tank or large durable containers (like a 55-gallon drum for smaller setups).
  • Perforated PVC pipes for the drain field.
  • Gravel or crushed stone for drainage.
  • Landscaping fabric to prevent soil intrusion.
  • Shovel, pickaxe, or an excavator for digging.
  • Pipe fittings, connectors, and adhesive.
  • Safety gear: gloves, goggles, and sturdy boots.

Step 1: Site Selection and Preparation

Choose an appropriate location for your septic system, keeping the following points in mind:

  • Distance: Place the system at least 50 feet from water sources, such as wells, lakes, or rivers.
  • Slope: Ensure the area slopes downward away from the house to allow for natural drainage.
  • Regulations: Check local building codes and obtain permits if required.

Mark the areas for the septic tank and the drain field.

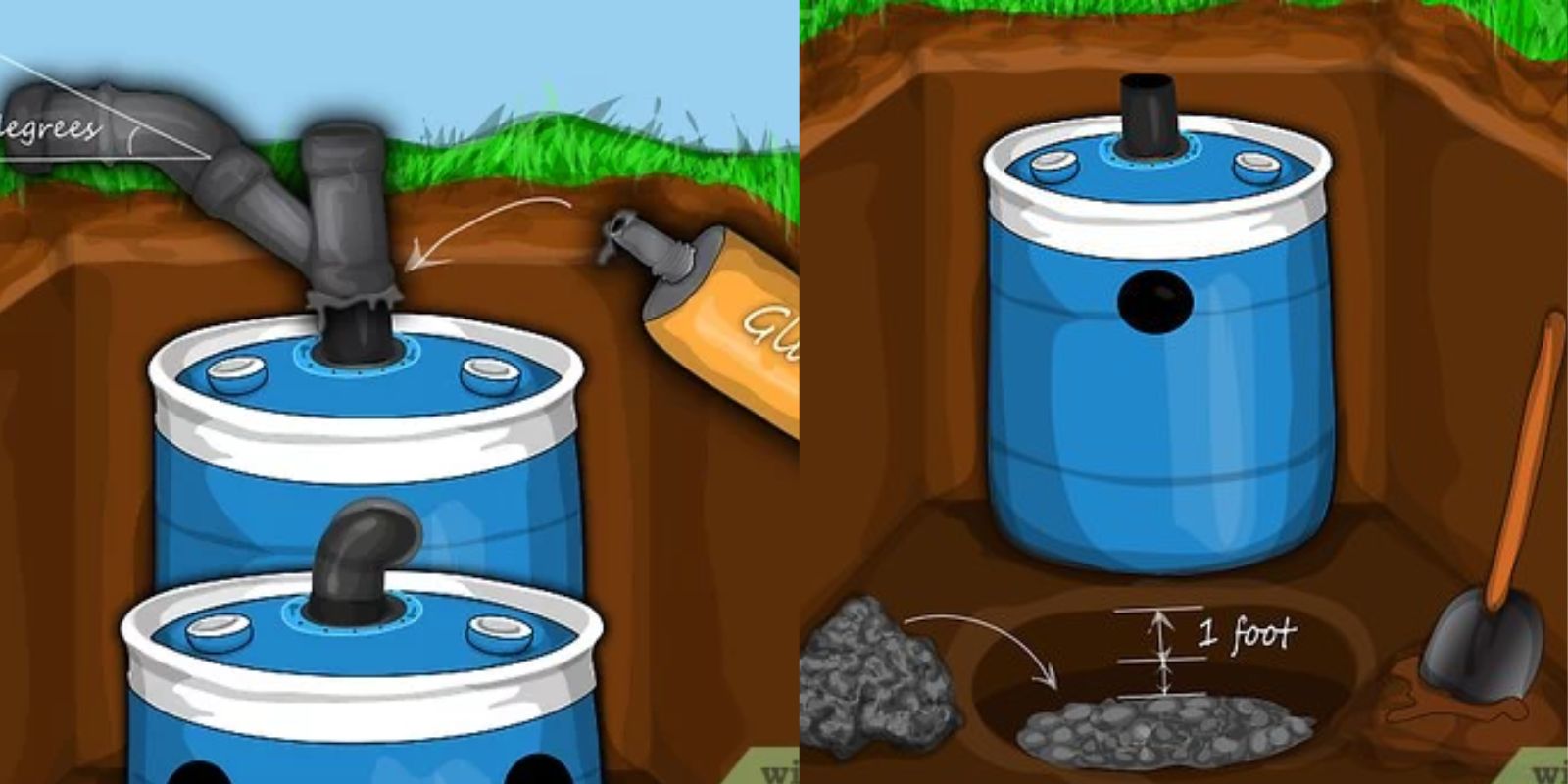

Step 2: Digging the Tank and Trenches

  1. Tank Pit: Dig a hole large enough to fit your septic tank with space for connections. Ensure the base is level.
  2. Drain Field Trenches: Dig trenches for the perforated pipes. Trenches should be 2-3 feet deep and spaced 3-5 feet apart.
  3. Slope: Maintain a slight slope (about 1-2%) from the tank to the drain field to facilitate gravity flow.

Step 3: Installing the Septic Tank

  1. Place the tank in the excavated pit.
  2. Connect the inlet pipe to the house’s wastewater line.
  3. Attach the outlet pipe to the drain field line.
  4. Seal all connections with waterproof adhesive or tape to prevent leaks.

Step 4: Setting Up the Drain Field

  1. Base Layer: Fill the bottom of the trenches with a 6-inch layer of gravel or crushed stone.
  2. Lay Pipes: Position perforated PVC pipes in the trenches. Ensure the holes face downward.
  3. Cover Pipes: Add another layer of gravel (4-6 inches) over the pipes to aid drainage.
  4. Landscaping Fabric: Place landscaping fabric over the gravel to prevent soil from clogging the system.

Step 5: Backfilling and Final Touches

  1. Backfill the trenches and tank pit with soil, leaving the access points for inspection and maintenance.
  2. Compact the soil gently to prevent settling over time.
  3. Avoid planting trees or deep-rooted plants near the system to prevent root intrusion.

Step 6: Testing the System

  1. Run water through your home’s plumbing to test the system.
  2. Check for leaks or blockages at the tank and drain field connections.
  3. Monitor the system for a few days to ensure smooth operation.

Maintenance Tips

To keep your septic system running efficiently:

  • Pump the tank every 3-5 years.
  • Avoid flushing non-biodegradable items or harsh chemicals.
  • Use water efficiently to prevent overloading the system.
  • Inspect the system regularly for signs of damage or clogs.

Benefits of a DIY Small Septic System

  1. Cost-Effective: Save money by building your own system instead of hiring professionals.
  2. Eco-Friendly: Properly treated wastewater reduces environmental impact.
  3. Self-Sufficiency: Gain independence in managing your home’s waste disposal.

Final Thoughts

Constructing a small septic system at home is a rewarding project that promotes sustainable living. While the process requires careful planning and labor, the long-term benefits make it worthwhile. By following these steps and maintaining your system regularly, you can enjoy an efficient and eco-friendly wastewater solution.

💡 Have you tried building a septic system? Share your experience or ask questions in the comments!
